Iranian Journal of Materials Science and Engineering
Iran University of Science & Technology
Wed, Sep 9, 2026
[Archive]
Abstract: (3 Views)

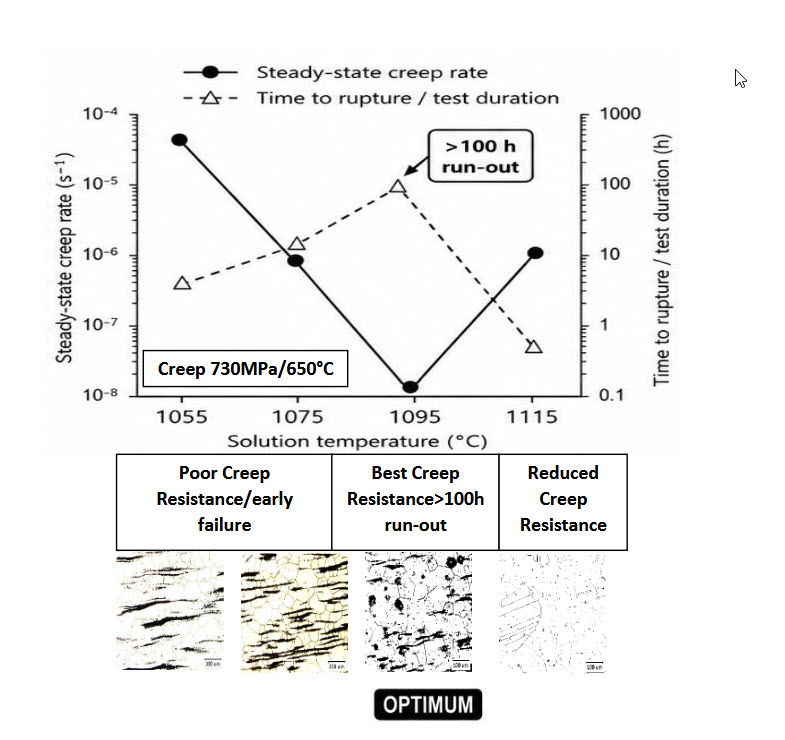

This study examines how solution treatment temperature affects the dissolution of fine-grained areas (FGAs) that form during hot rolling of René 65 nickel-based superalloy. These FGAs, which are rich in sub-micron to micron-sized primary γ' precipitates (γ'I) and located mainly in shear bands, remained stable after sub-solvus treatments below 1055 °C. They dissolved gradually with increasing temperature and disappeared completely above 1115 °C. The resulting microstructural changes, along with high-temperature tensile properties and creep behavior in the 1055–1115 °C range (followed by aging at 760 °C for 8 h), were evaluated. Raising the solution temperature reduced the FGA volume fraction and improved tensile elongation, while yield strength (YS) and ultimate tensile strength (UTS) remained largely unchanged. At 1095 °C, creep life at 730 °C / 530 MPa exceeded 100 h without fracture and exhibited a notably lower steady-state creep rate. These improvements appear linked to the elimination of secondary γ' depleted zones around the former FGAs, which produced a more uniform secondary γ' distribution, greater crack path deflection, and continued Zener pinning by remaining primary precipitates. However, solution treatment at 1115 °C caused grain growth and coarsening of secondary precipitates, which reduced creep performance. Overall, 1095 °C provided the best compromise for microstructural uniformity and balanced high-temperature properties in hot-rolled René 65.
Keywords: René 65 superalloy, fine-grained areas (FGAs), solution treatment, γ' precipitates, creep resistance.
Type of Study: Research Paper |
Subject:
Mechanical Performance and Formability of Materials
Send email to the article author
| Rights and permissions | |
 |
This work is licensed under a Creative Commons Attribution-NonCommercial 4.0 International License. |
